Optimizing meshes

You can improve the performance of your Kanzi application by reducing the amount of vertex data in the meshes the application shows. When you reduce the amount of mesh vertex data, the size of the kzb file and the amount of GPU memory required at runtime decrease.

Editing mesh attributes

You can change vertex data of a mesh using the Mesh Attributes Editor.
For example, you can use the Mesh Attributes Editor to remove the attributes you do not use and select the optimal data type for your needs.

To edit mesh attributes:

1. In the Library > Meshes right-click the mesh you want to edit and select Open Mesh Attributes Editor.

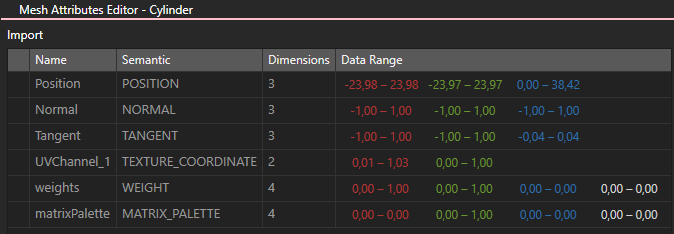

   In the Mesh Attributes Editor the Import table shows the semantic, number of dimensions, and data range of the attributes of the mesh as you imported it to Kanzi Studio

2. In the Mesh Attributes Editor in the Export table set these attributes to control how Kanzi Studio exports the mesh to the kzb file:
   • Semantic sets the meaning of the attribute. The semantics of the mesh attributes match the semantics of the shader attributes of the material type the mesh uses.
     For example, the position, normal, tangent, texture coordinate, or color vector.
     Tip To view and edit the semantics of the shader attributes of a material type, in the Library > Materials and Textures > Material Types right-click a material type and select Open Shader Attributes Editor.
   • Semantic Index sets the index of the attribute in the material type.
     For example, the correct texture coordinate.
     The semantic index of each mesh attribute matches the semantic index of the shader attribute with the same semantic.

   • Data Type sets the data type Kanzi uses when storing the attribute to the GPU memory and exporting it to the kzb file. See Setting the optimal data type for mesh attributes.
   • Dimensions sets the number of dimensions Kanzi uses for the attribute.
     Kanzi Studio automatically sets this value when you import a mesh.
   • Output Components sets the components to which Kanzi maps the attribute.
     Kanzi Studio automatically sets this value when you import a mesh.

   • Export sets the attributes Kanzi exports to the kzb file.
     Select the check box for the attributes you use and clear the check box for the attributes you do not use.
     Make sure you export all attributes that match the shader attributes of the material types the mesh is using.
     Tip To view and edit the semantics of the shader attributes of a material type, in the Library > Materials and Textures > Material Types right-click a material type and select Open Shader Attributes Editor.

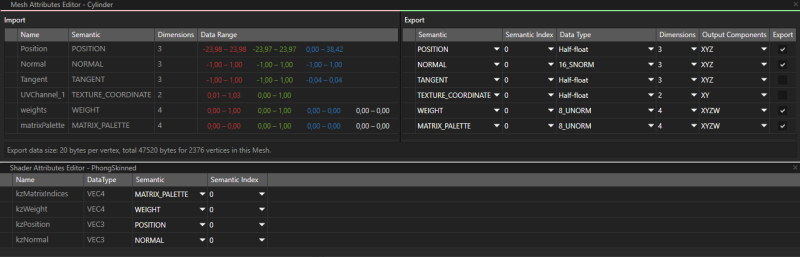

     In this example the tangent and texture coordinate attributes are not exported because they are not among the shader attributes of the material type the mesh uses.

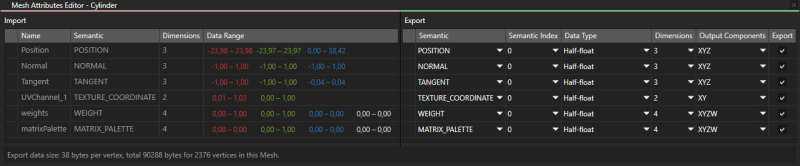

   The status bar at the bottom of the Mesh Attributes Editor shows the size of the mesh vertex data if you export the kzb file with the values you have currently set in the Export table.


Setting the optimal data type for mesh attributes

To optimize your meshes, set for each mesh attribute the data type that occupies the least amount of space while providing enough visual accuracy for your needs. Kanzi uses the data type when storing the attribute to the GPU memory and exporting it to the kzb file. When you use data types that occupy less space, the size of the kzb file and the amount of GPU memory required at runtime decrease. See Data types for mesh attributes.

To set the optimal data type for a mesh attribute:

1. In the Library > Meshes right-click the mesh you want to edit and select Open Mesh Attributes Editor.

2. In the Mesh Attributes Editor in the Import table check the values in the Data Range column for the attribute the data type of which you want to set.
   Kanzi Studio marks the data ranges of the different dimensions of a mesh attribute with different colors.

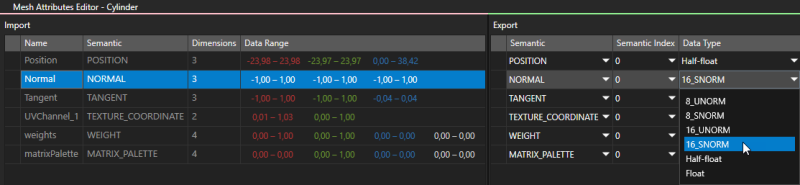

3. In the Mesh Attributes Editor in the Export table use the dropdown in the Data Type column to set the export data type.
   When setting the data type, keep in mind:
   • Select the data type that occupies the least amount of space while providing enough visual accuracy for your needs.
     You can see in the status bar at the bottom of the Mesh Attributes Editor the size of the mesh vertex data with the data types you set, and visually inspect the accuracy of the rendering in the Preview.

   • Select a data type the range of which covers all the values in the Data Range column. See Data types for mesh attributes.
     For example, in most cases when the data range for all components of the attribute is 0 ... 1 you can set the Data Type to 16_UNORM, and when the data range is -1 ... 1 you can use 16_SNORM.

   • The list of available data types depends on what your target graphics API supports. See Data types for mesh attributes.
   • The normalized 32-bit data types (32_UNORM and 32_SNORM) provide the highest accuracy. Normalized data types provide uniform accuracy across the data range, while the Float and Half-float data types provide higher accuracy for values close to zero, and lower accuracy for large values.
   • This table lists recommendations for choosing the export data type for different mesh attributes.


     Semantic	Recommended data type	Kanzi Engine normalizes before export
     Position	Based on data range
     Normal, Tangent, Bitangent	OpenGL 2.0: 16_SNORM OpenGL 3.0: 2_10_10_10_SNORM_PACK32	x
     Texture coordinate	Based on data range, 16_UNORM / 16_SNORM / Float
     Color	Based on data range, 8_UNORM / Half-float / Float
     Weight	Based on data range
     Matrix palette	Based on data range

Data types for mesh attributes

This table lists the mesh attribute data types that Kanzi supports.
